Partitions and the flash layout

The firmware image, the PHP source, and any persistent data all live in the chip's flash, carved into partitions. php-esp32 does not ship one fixed table: it generates it per build, so the same source adapts to a microSD project (source on the card) or an embedded one (source packed into flash), and to boards with very different flash sizes.

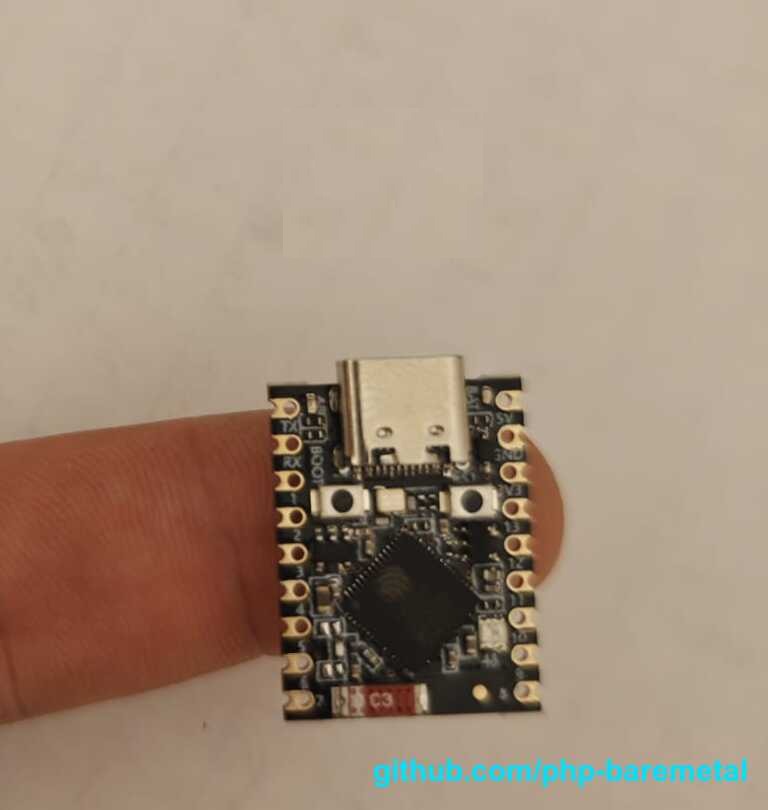

A ~$4, fingertip-sized ESP32-S3 (4 MB flash / 2 MB PSRAM). On boards this small the ~3 MB firmware, the embedded source, and the store all have to fit at once — this page is about making that work.

How the table is built

cmake/gen-partitions.cmake runs before the build and assembles the table from two layers:

• storage is added only for an embedded project, sized to the PHP source (cluster-accurate occupancy + FAT overhead + [storage] reserve_kb). A microSD project has no storage partition — the source runs from the card and main.c falls back to it.
• phpstore is added only when the project sets [store] size_kb (see Persistent store).

The generated CSV lands in build/partitions.gen.csv (never committed) and is selected via a sdkconfig fragment layered last, so it wins over the board's committed default.

What a board definition pins

A board is a directory under boards/<family>/<board>/. Two files decide the flash layout:

CONFIG_ESPTOOLPY_FLASHSIZE_4MB=y      # how much flash the table must fit inside
CONFIG_ESPTOOLPY_FLASHSIZE="4MB"
CONFIG_SPIRAM_MODE_QUAD=y             # PSRAM electrical mode (Quad vs Octal) -- see below

• partitions.csv — the fixed partitions, above all the factory size that caps how big the firmware can be (and, on a small board, how much is left for storage).
• sdkconfig.board — layered last over the base and the family (boards/<family>/sdkconfig.family), so board choices win. It pins the flash size and, when the board differs from its family, the PSRAM mode.

Small-flash boards: the tight-fit case

The board in the photo — an ESP32-S3-Zero (ESP32-S3FH4R2) — has 4 MB flash and 2 MB Quad PSRAM, far less than the S3-ETH's 16 MB / 8 MB Octal. Its board definition overrides the family assumptions:

With those three lines the ~2.8 MB firmware, a small embedded storage FAT, and nvs/phy_init all fit inside 4 MB, and 2 MB of PSRAM is enough for a small script. (A framework the size of Symfony needs far more heap than 2 MB, so it belongs on a big-PSRAM board — this is a memory limit, not a bug.)

Bringing up or fixing a board

When you meet a board whose flash or PSRAM differs from what its definition assumes, don't guess:

1. 01

   Read the real chip

   phpflash discover prints the true flash size and PSRAM (e.g. Embedded Flash 4MB (XMC), Embedded PSRAM 2MB (AP_3v3)).

2. 02

   Pin flash size and PSRAM mode

   in sdkconfig.board (CONFIG_ESPTOOLPY_FLASHSIZE*, and CONFIG_SPIRAM_MODE_QUAD/_OCT when it differs from the family).

3. 03

   Size `factory`

   in the board's partitions.csv so the firmware fits and leaves room for the generated partitions on that flash.

The esp32-s3-zero board is exactly this correction applied — a good template for a new small board.

Overriding it per project

The fixed table belongs to the board, but a single project can take it over without forking the firmware: drop a partitions.csv next to php-esp32.config.toml and the build uses it instead (the generated storage/phpstore are still appended). phpflash partitions publish writes a starter table from the board's defaults, with a per-board list of sensible factory sizes — see the phpflash docs. The custom-partitions example shows it end to end.
